LeadTools创建“检测边缘”应用程序的具体步骤

1、打开Visual Studio .NET。点击 文件->新建->项目…。打开新建项目对话框后，在模板中选择“Visual C#”或“Visual Basic”，随后选择“Windows窗体应用程序”。在名称栏中输入项目名称“DetectEdgesAndLines”，并使用“浏览”按钮选择您工程的存储路径，点击“确定”。

2、在“解决方案资源管理器”中，右击“引用”，选择“添加引用”。根据当前工程的 Framework 版本和生成目标平台，选择添加相应的LeadTools控件，例如工程中的版本为 Framework 4.0、生成目标平台是 x86，则浏览选择Leadtools For .NET文件夹” <LEADTOOLS_INSTALLDIR>\Bin\DotNet4\Win32”,选择以下的DLL“：Leadtools.dllLeadtools.Codecs.dllLeadtools.Codecs.Cmp.dllLeadtools.ImageProcessing.Color.dll Leadtools.ImageProcessing.Effects.dll Leadtools.ImageProcessing.SpecialEffects.dll Leadtools.WinForms.dll

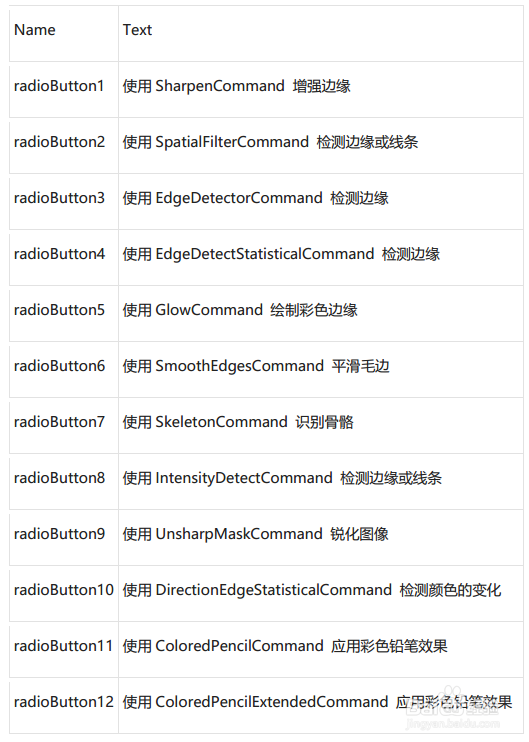

3、从工具箱（视图->工具箱），添加12个RadioButton控件（将RadioButton的Text属性依照下表修改），两个Panel控件（Name分别修改为panelBefore和panelAfter）。如下图：

4、切换至Form1的代码视图（右击Form1，选择查看代码），将下面几行代码添加到文件开始处：1: using Leadtools; 2: using Leadtools.Codecs; 3: using Leadtools.WinForms; 4: using Leadtools.ImageProcessing.Effects; 5: using Leadtools.ImageProcessing.SpecialEffects; 6: using Leadtools.ImageProcessing.Color;

5、将以下变量添加至Form1类：1: private RasterImageViewer beforePic; 2: private RasterImageViewer afterPic; 3: private RasterCodecs codecs; 4: private RasterImage temp;

6、添加Form1 Load事件句柄，在其中添加以下代码：1: beforePic = new RasterImageVi髫潋啜缅ewer(); 2: beforePic.BackColor = Color.DarkCyan; 3: beforePic.Dock = DockStyle.Fill; 4: beforePic.InteractiveMode = RasterViewerInteractiveMode.Pan; 5: beforePic.HorizontalAlignMode = RasterPaintAlignMode.Center; 6: beforePic.VerticalAlignMode = RasterPaintAlignMode.Center; 7: beforePic.AutoResetScaleFactor = false; 8: panelBefore.Controls.Add(beforePic); 9: beforePic.BringToFront();10:11: afterPic = new RasterImageViewer();12: afterPic.BackColor = beforePic.BackColor;13: afterPic.Dock = beforePic.Dock;14: afterPic.InteractiveMode = beforePic.InteractiveMode;15: afterPic.HorizontalAlignMode = beforePic.HorizontalAlignMode;16: afterPic.VerticalAlignMode = beforePic.VerticalAlignMode;17: afterPic.AutoResetScaleFactor = beforePic.AutoResetScaleFactor;18: panelAfter.Controls.Add(afterPic);19: afterPic.BringToFront();20:21: codecs = new RasterCodecs();22: codecs.ThrowExceptionsOnInvalidImages = true;

7、双击radioButton1，在radioButton1 CheckedChanged事件句柄中添加以下代码：（本段代码为SharpenCommand类的使用）1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: // Prepare the command 4: SharpenCommand command = new SharpenCommand(); 5: //Increase the sharpness by 25 percent of the possible range. 6: command.Sharpness = 950; 7: command.Run(temp); 8: afterPic.Image = temp; 9: codecs.Save(temp, Path.Combine(Application.StartupPath, @"..\..\Pic\SharpeCommand.jpg"), RasterImageFormat.Jpeg, 24);

8、双击radioButton2，在radioButton2 CheckedChanged事件句柄中添加以下代码：（本段代码为SpatialFilterCommand类的使用）1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: SpatialFilterCommand command = new SpatialFilterCommand(SpatialFilterCommandPredefined.PrewittHorizontal); 5: 6: command.Run(temp); 7: afterPic.Image = temp;

9、双击radioButton3，在radioButton3 CheckedChanged事件甜入艺阝句柄中添加以下代码：（本段代码为EdgeDetectorCommand类的使用）1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: // Prepare the command 4: EdgeDetectorCommand command = new EdgeDetectorCommand(); 5: command.Threshold = 60; 6: command.Filter = EdgeDetectorCommandType.SobelBoth; 7: //find the edges of the image. 8: command.Run(temp); 9: afterPic.Image = temp;10: codecs.Save(temp, Path.Combine(Application.StartupPath, @"..\..\Pic\EdgeDetectorCommand.jpg"), RasterImageFormat.Jpeg, 24);

10、双击radioButton4，在radioButton4 CheckedChanged事件甜入艺阝句柄中添加以下代码：（本段代码为EdgeDetectStatisticalCommand类的使用）1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: EdgeDetectStatisticalCommand command = new EdgeDetectStatisticalCommand(); 5: command.Dimension = 15; 6: command.Threshold = 50; 7: command.EdgeColor = new RasterColor(255, 255, 255); 8: command.BackGroundColor = new RasterColor(0, 0, 0); 9:10: command.Run(temp);11: afterPic.Image = temp;12: codecs.Save(temp, Path.Combine(Application.StartupPath, @"..\..\Pic\EdgeDetectStatisticalCommand.jpg"), RasterImageFormat.Jpeg, 24);13:

11、双击radioButton5，在radioButton5 CheckedChanged事件句柄中添加以下代码：（本段代码为GlowCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: // Prepare the command 4: GlowCommand command = new GlowCommand(); 5: command.Dimension = 5; 6: command.Brightness = 3; 7: command.Threshold = 0; 8: // Apply glow effect on the image. 9: command.Run(temp);10: afterPic.Image = temp;11: codecs.Save(temp, Path.Combine(Application.StartupPath, @"..\..\Pic\GlowCommand.jpg"), RasterImageFormat.Jpeg, 24);

12、双击radioButton6，在radioButton6 CheckedChanged事件句柄中添加以下代码：（本段代码为SmoothEdgesCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: // Prepare the command 4: SmoothEdgesCommand command = new SmoothEdgesCommand(); 5: command.Amount = 75; 6: command.Threshold = 0; 7: // Apply the Smooth Edge effect to the image. 8: command.Run(temp); 9: afterPic.Image = temp;

13、双击radioButton7，在radioButton7 CheckedChanged事件句柄中添加以下代码：（本段代码为SkeletonCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: // Prepare the command 4: SkeletonCommand command = new SkeletonCommand(); 5: command.Threshold = 128; 6: command.Run(temp); 7: afterPic.Image = temp;

14、双击radioButton8，在radioButton8 CheckedChanged事件甜入艺阝句柄中添加以下代码：（本段代码为Intensity肛舀辨乔DetectCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: //准备命令 4: IntensityDetectCommand command = new IntensityDetectCommand(); 5: //应用滤波器 6: command.LowThreshold = 128; 7: command.HighThreshold = 255; 8: command.InColor = new RasterColor(255, 255, 255); 9: command.OutColor = new RasterColor(0, 0, 0);10: command.Channel = IntensityDetectCommandFlags.Master;11: command.Run(temp);12: afterPic.Image = temp;

15、双击radioButton9，在radioButton9 CheckedChanged事件句柄中添加以下代码：（本段代码为UnsharpMaskCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: UnsharpMaskCommand command = new UnsharpMaskCommand(); 5: command.Amount = 200; 6: command.Radius = 15; 7: command.Threshold = 50; 8: command.ColorType = UnsharpMaskCommandColorType.Rgb; 9: command.Run(temp);10: afterPic.Image = temp;

16、双击radioButton10，在radioButton10 CheckedChanged事件句柄中添加以下代码：（本段代码为DirectionEdgeStatisticalCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: DirectionEdgeStatisticalCommand command = new DirectionEdgeStatisticalCommand(); 5: command.Dimension = 15; 6: command.Threshold = 128; 7: command.Angle = 4500; 8: command.EdgeColor = new RasterColor(255, 255, 255); 9: command.BackGroundColor = new RasterColor(0, 0, 0);10: command.Run(temp);11: afterPic.Image = temp;

17、双击radioButton11，在radioButton11 CheckedChanged事件句柄中添加以下代码：（本段代码为ColoredPencilCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: ColoredPencilCommand command = new ColoredPencilCommand(); 5: command.Ratio = 50; 6: command.Dimension = 3; 7: command.Run(temp); 8: afterPic.Image = temp;

18、双击radioButton12，在radioButton12 CheckedChanged事件句柄中添加以下代码：（本段代码为ColoredPencilExtendedCommand类的使用） 1: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\Master.jpg")); 2: temp = beforePic.Image.Clone(); 3: 4: ColoredPencilExtendedCommand command = new ColoredPencilExtendedCommand(); 5: command.Size = 5; 6: command.Strength = 4; 7: command.Threshold = 0; 8: command.PencilRoughness = 250; 9: command.StrokeLength = 15;10: command.PaperRoughness = 100;11: command.Flags = ColoredPencilExtendedCommandFlags.Artistic;12: command.Run(temp);13: afterPic.Image = temp;

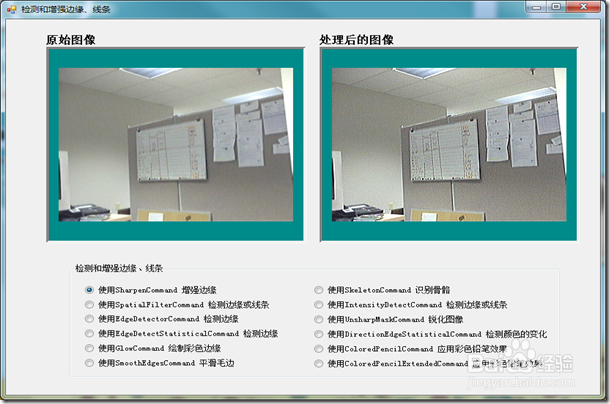

19、编译运行程序，本DEMO分别使用了LeadTools的12个类检测增强图像的边缘和线条，结果如下图：
