LeadTools创建“色彩调整”应用程序的方法

2026-02-26 23:34:14

1、打开Visual Studio .NET。点击文件->新建->项目…。打开新建项目对话框后，在模板中选择“Visual C#”或“Visual Basic”，随后选择“Windows窗体应用程序”。在名称栏中输入项目名称“AdjustColors”，并使用“浏览”按钮选择您工程的存储路径，点击“确定”。

2、在“解决方案资源管理器”中，右击“引用”，选择“添加引用”。根据当前工程的 Framework 版本和生成目标平台，选择添加相应的LeadTools控件，例如工程中的版本为 Framework 4.0、生成目标平台是 x86，则浏览选择Leadtools For .NET文件夹” <LEADTOOLS_INSTALLDIR>\Bin\DotNet4\Win32”,选择以下的DLL“：

Leadtools.dll

Leadtools.Codecs.dll

Leadtools.Codecs.Cmp.dll

Leadtools.ImageProcessing.Core.dll

Leadtools.ImageProcessing.Color.dll

Leadtools.ImageProcessing.SpecialEffects.dll

Leadtools.WinForms.dll

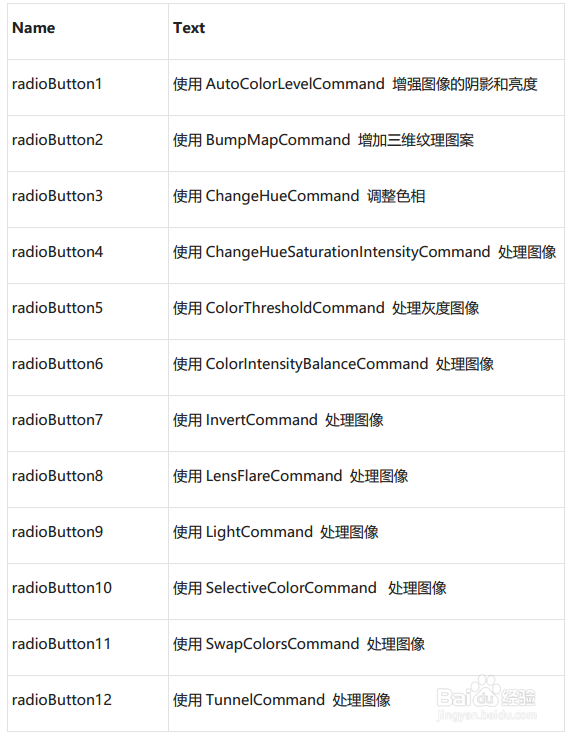

3、从工具箱（视图->工具箱），添加12个RadioButton控件（将RadioButton的Text属性依照下表修改），两个Panel控件（Name分别修改为panelBefore和panelAfter）。如下图：

LeadTools创建“色彩调整”应用程序的方法

4、切换至Form1的代码视图（右击Form1，选择查看代码），将下面几行代码添加到文件开始处：

1: using Leadtools;

2: using Leadtools.Codecs;

3: using Leadtools.WinForms;

4: using Leadtools.ImageProcessing.Color;

5: using Leadtools.ImageProcessing.SpecialEffects;

6: using Leadtools.ImageProcessing.Core;

5、将以下变量添加至Form1类：

1: private RasterImageViewer beforePic;

2: private RasterImageViewer afterPic;

3: private RasterCodecs codecs;

4: private RasterImage temp;

6、添加Form1 Load事件句柄，在其中添加以下代码：

1: beforePic = new RasterImageViewer();

2: beforePic.BackColor = Color.DarkCyan;

3: beforePic.Dock = DockStyle.Fill;

4: beforePic.InteractiveMode = RasterViewerInteractiveMode.Pan;

5: beforePic.HorizontalAlignMode = RasterPaintAlignMode.Center;

6: beforePic.VerticalAlignMode = RasterPaintAlignMode.Center;

7: beforePic.AutoResetScaleFactor = false;

8: panelBefore.Controls.Add(beforePic);

9: beforePic.BringToFront();

10:

11: afterPic = new RasterImageViewer();

12: afterPic.BackColor = beforePic.BackColor;

13: afterPic.Dock = beforePic.Dock;

14: afterPic.InteractiveMode = beforePic.InteractiveMode;

15: afterPic.HorizontalAlignMode = beforePic.HorizontalAlignMode;

16: afterPic.VerticalAlignMode = beforePic.VerticalAlignMode;

17: afterPic.AutoResetScaleFactor = beforePic.AutoResetScaleFactor;

18: panelAfter.Controls.Add(afterPic);

19: afterPic.BringToFront();

20:

21: codecs = new RasterCodecs();

22: codecs.ThrowExceptionsOnInvalidImages = true;

23: beforePic.Image = codecs.Load(Path.Combine(Application.StartupPath, @"..\..\Pic\cannon.jpg"));

7、双击radioButton1，在radioButton1 CheckedChanged事件句柄中添加以下代码：

（本段代码为AutoColorLevelCommand类的使用）

1: temp = beforePic.Image.Clone();

3: AutoColorLevelCommand command = new AutoColorLevelCommand();

4: ommand.Run(temp);

5: afterPic.Image = temp;

6: codecs.Save(temp, Path.Combine(Application.StartupPath, @"..\..\Pic\AutoColorLevelCommand.jpg"), RasterImageFormat.Jpeg, 24);

8、双击radioButton2，在radioButton2 CheckedChanged事件句柄中添加以下代码：

（本段代码为BumpMapCommand类的使用）

1: temp = beforePic.Image.Clone();

2: // 准备命令

3: BumpMapCommand command = new BumpMapCommand();

4: command.Azimuth = 5;

5: command.Brightness = 50;

6: command.BumpImage = temp;

7: command.BumpPoint = new LeadPoint(0, 0);

8: command.Depth = 3;

9: command.DestinationPoint = new LeadPoint(0, 0);

10: command.Elevation = 0;

11: command.Intensity = 0;

12: command.LookupTable = null;

13: command.Tile = true;

14: command.Run(temp);

15: afterPic.Image = temp;

9、双击radioButton3，在radioButton3 CheckedChanged事件句柄中添加以下代码：

（本段代码为ChangeHueCommand类的使用）

1: temp = beforePic.Image.Clone();

2: ChangeHueCommand command = new ChangeHueCommand();

3: command.Angle = 180;

4: command.Run(temp);

5: afterPic.Image = temp;

10、双击radioButton4，在radioButton4 CheckedChanged事件句柄中添加以下代码：

（本段代码为ChangeHueSaturationIntensityCommand类的使用）

1: temp = beforePic.Image.Clon

2: // 准备命令

3: ChangeHueSaturationIntensit

4: ChangeHueSaturationIntensi

5: data[0] = new ChangeHueSatu

6: data[0].Hue = 18000;

7: data[0].Saturation = 0;

8: data[0].Intensity = 0;

9: data[0].OuterLow = 315;

10: data[0].OuterHigh = 45;

11: data[0].InnerLow = 345;

12: data[0].InnerHigh = 15;

13: command.Data = data;

14: command.Hue = 0;

15: command.Saturation = 0;

16: command.Intensity = 0;

17:

18: command.Run(temp);

19: afterPic.Image = temp;

11、双击radioButton5，在radioButton5 CheckedChanged事件句柄中添加以下代码：

（本段代码为ColorThresholdCommand类的使用）

1: temp = beforePic.Image.Clone();

3: ColorThresholdCommandComponent[] Components = new ColorThresholdCommandComponent[3];

5: Components[0] = new ColorThresholdCommandComponent();

6: Components[0].MinimumRange = 128;

7: Components[0].MaximumRange = 255;

8: Components[0].Flags = 0;

9: Components[1] = new ColorThresholdCommandComponent();

10: Components[1].MinimumRange = 128;

11: Components[1].MaximumRange = 255;

12: Components[1].Flags = 0;

13: Components[2] = new ColorThresholdCommandComponent();

14: Components[2].MinimumRange = 128;

15: Components[2].MaximumRange = 255;

16: Components[2].Flags = 0;

17:

18: ColorThresholdCommand command = new ColorThresholdCommand(ColorThresholdCommandType.Rgb, Components);

19: command.Run(temp);

20: afterPic.Image = temp;

12、双击radioButton6，在radioButton6 CheckedChanged事件句柄中添加以下代码：

（本段代码为ColorThresholdCommand类的使用）

1: temp = beforePic.Image.Clone();

3: ColorIntensityBalanceCommand command = new ColorIntensityBalanceCommand();

4: ColorIntensityBalanceCommandData Shadows = new ColorIntensityBalanceCommandData();

5: ColorIntensityBalanceCommandData MidTone = new ColorIntensityBalanceCommandData();

6: ColorIntensityBalanceCommandData HighLight = new ColorIntensityBalanceCommandData()

8: Shadows.Red = 60;

9: Shadows.Blue = 0;

10: Shadows.Green = 0;

11:

12: MidTone.Red = 40;

13: MidTone.Blue = 0;

14: MidTone.Green = 0;

15:

16: HighLight.Red = 70;

17: HighLight.Blue = 0;

18: HighLight.Green = 0;

19:

20: command.Shadows = Shadows;

21: command.MidTone = MidTone;

22: command.HighLight = HighLight;

23: command.Luminance = false;

24:

25: command.Run(temp);

26: afterPic.Image = temp;

13、双击radioButton7，在radioButton7 CheckedChanged事件句柄中添加以下代码：

（本段代码为InvertCommand类的使用）

1: temp = beforePic.Image.Clone();

2: // 准备命令

3: InvertCommand command = new InvertCommand();

4: //反转图像的颜色

5: command.Run(temp);

6: afterPic.Image = temp;

14、双击radioButton8，在radioButton8 CheckedChanged事件句柄中添加以下代码：

（本段代码为LensFlareCommand类的使用）

1: temp = beforePic.Image.Clone();

3: LensFlareCommand command = new LensFlareCommand();

5: command.CenterPoint = new LeadPoint(temp.Width / 4, temp.Height / 4);

6: command.Brightness = 100;

7: command.Type = LensFlareCommandType.Type1;

8: command.Color = new RasterColor(100, 150, 10);

10: command.Run(temp);

11: afterPic.Image = temp;

15、双击radioButton9，在radioButton9 CheckedChanged事件句柄中添加以下代码：

（本段代码为LightCommand类的使用）

1: temp = beforePic.Image.Clone();

3: LightCommandData[] Data = new LightCommandData[1];

4: Data[0].Angle = 0;

5: Data[0].CenterPoint = new LeadPoint(temp.Width / 2, temp.Height / 2);

6: Data[0].Edge = 0;

7: Data[0].Brightness = 100;

8: Data[0].FillColor = new RasterColor(255, 255, 255);

9: Data[0].Height = Math.Min(temp.Height, temp.Width) / 2;

10: Data[0].Width = Math.Min(temp.Height, temp.Width) / 2;

11: Data[0].Opacity = 100;

12: Data[0].Type = LightCommandType.Spot;

13:

14: LightCommand command = new LightCommand();

15: command.Ambient = 100;

16: command.Bright = 100;

17: command.Data = Data;

18: command.AmbientColor = new RasterColor(255, 255, 255);

19: command.Run(temp);

20: afterPic.Image = temp;

16、双击radioButton10，在radioButton10 CheckedChanged事件句柄中添加以下代码：

（本段代码为SelectiveColorCommand类的使用）

1: temp = beforePic.Image.Clone();

3: SelectiveColorCommand command = new SelectiveColorCommand();

5: command.ColorsData[(int)SelectiveCommandColorTypes.Red].Cyan = -100;

6: command.ColorsData[(int)SelectiveCommandColorTypes.Yellow].Cyan = 34;

7: command.ColorsData[(int)SelectiveCommandColorTypes.Yellow].Magenta = 100;

8: command.ColorsData[(int)SelectiveCommandColorTypes.Yellow].Yellow = 40;

9: command.ColorsData[(int)SelectiveCommandColorTypes.Green].Black = 100;

10: command.ColorsData[(int)SelectiveCommandColorTypes.Neutral].Cyan = -65;

11: command.ColorsData[(int)SelectiveCommandColorTypes.Neutral].Magenta = -39;

12: command.ColorsData[(int)SelectiveCommandColorTypes.Neutral].Yellow = 63;

13: command.Run(temp);

14: afterPic.Image = temp;

17、双击radioButton11，在radioButton11 CheckedChanged事件句柄中添加以下代码：

（本段代码为SwapColorsCommand类的使用）

1: temp = beforePic.Image.Clone();

3: SwapColorsCommand command = new SwapColorsCommand();

4: command.Type = SwapColorsCommandType.RedGreen;

5: command.Run(temp);

6: afterPic.Image = temp;

18、双击radioButton12，在radioButton12 CheckedChanged事件句柄中添加以下代码：

（本段代码为TunnelCommand类的使用）

1: temp = beforePic.Image.Clone();

3: TunnelCommand command = new TunnelCommand();

4: command.CenterPoint = new LeadPoint(temp.Width / 2, temp.Height / 2);

5: command.ZValue = 0;

6: command.Distance = temp.Height;

7: command.Radius = temp.Width / 2;

8: command.Repeat = -1;

9: command.RotationOffset = 0;

10: command.Stretch = 25;

11: command.StartBright = 0;

12: command.EndBright = 100;

13: command.BrightLength = 20000;

14: command.BrightColor = new RasterColor(255, 255, 255);

15: command.FillColor = new RasterColor(0, 0, 0);

16: command.Flags = TunnelCommandFlags.WidthAxis | TunnelCommandFlags.Color;

17: command.Run(temp);

18: afterPic.Image = temp;

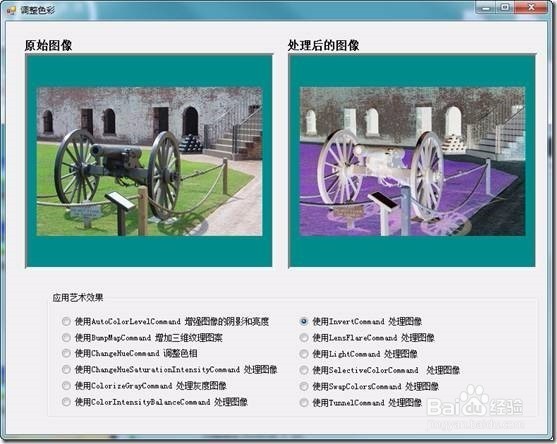

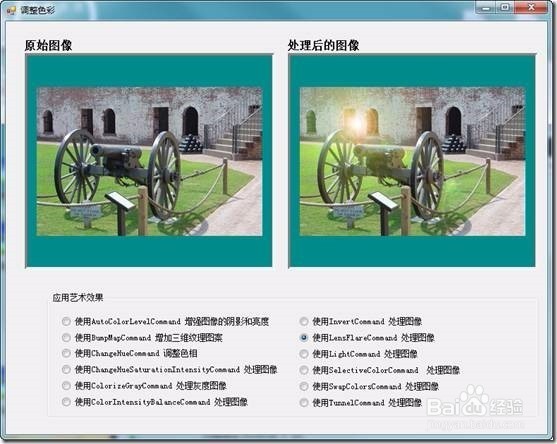

19、编译运行程序，此DEMO使用了LeadTools中12个调整图像色彩的类。运行结果如下：

LeadTools创建“色彩调整”应用程序的方法
