LightningChart版本8.1包含哪些新特征

2024-11-05 19:16:57

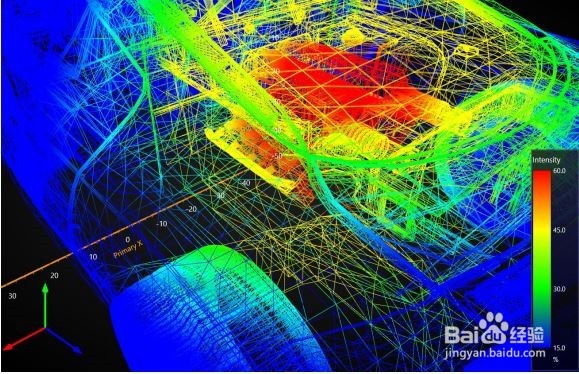

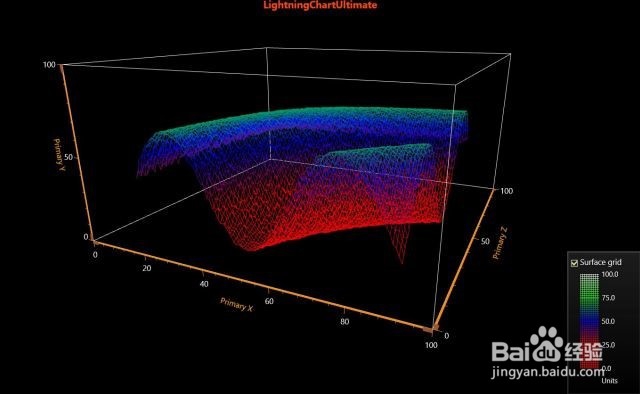

1、网格模型着色与线框显示着色，设置 Fill = True显示线框，设置WireFrame = True, and set preferred line color in WireFrameLineColor

2、简化3D框，可以直观3D数据设置所有的Visible = fal衡痕贤伎se for all walls, and set FrameBox.Style = AllEdges. Set the color or the frame with FrameBox.LineColor.

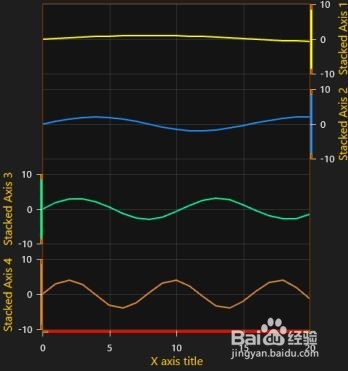

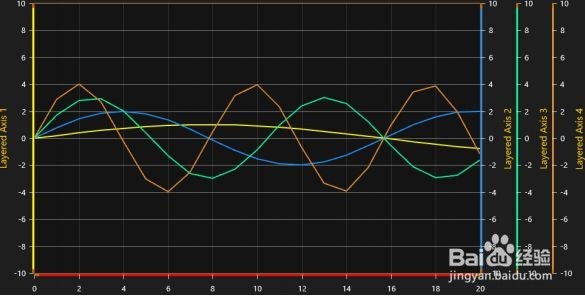

3、使用自动X或Y轴时，精确显示（上/下或左/右）数值设置 ViewXY.AxisLayout.YAxisAutoPlacement = Explicit, and axis.ExplicitAutoPlacementSide for axis as preferred.

4、帧分隔符和刷新方法选择WinForms选RenderOptions， WPF选ChartRenderOptions• ChartUpdateStyle: Sync / Async / LimitedFrameRate.- Sync: corresponds to old way, chart renders and then exits EndUpdate().- Async: refreshes it after exiting EndUpdate().- LimitedFrameRate: frame rate is limited• FrameRateLimit. Set Max FPS here. 0 = unlimited

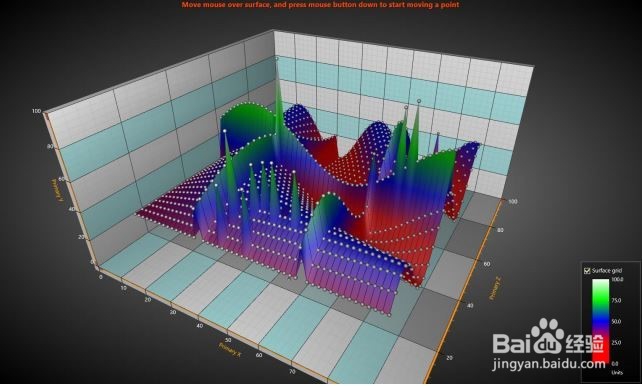

5、沿着所选维度移动3D点View3D.MovePoint method added to moving 3D point along selected dimension.
